Case studies案例

Four studies. 四个案例。

Clean movement, AGV-ready steel, a cleaning robot, and wireless monitoring. Figures are stated as specified. They are not averaged. 洁净转运、适配 AGV 的钢件、清洁机器人，以及无线监测。数字按规格原文列出，不做平均。

Four studies. Point at a row to hold it. 四个案例。指向一行即可停在那里。
01

Clean movement洁净转运

Warehouse to cleanroom, with two disinfection barriers.仓库到洁净室，两道消毒屏障。

Steps步骤 02

AGV-ready steel and GI/GRAGV 不锈钢与收发料

Carriers built to the route, records in ERP or SAP.载具按路径制造，记录进入 ERP 或 SAP。

GI/GR 03

Cleaning robot清洁机器人

Enclosed chassis, six-axis arm, scheduled cleaning.全封闭底盘、六轴臂、定期清洁。

± 3 mm 04

Environmental monitoring环境监测

Validation and routine monitoring on one wireless system.确效与例行监测合为一套无线系统。

EVMS

01 · Production material01 · 生产物料

Ten steps. The square is the load. 十步。方块是在途物料。

Proposed handoff only. It needs an approved risk assessment, qualification, validation, change control, and QA approval before anyone runs it. 仅为拟议交接。运行之前须完成风险评估、确认、验证、变更控制，并获得 QA 批准。

1 / 10

  1. A person opens the handoff.由人员开始交接。

  2. Loading configuration and worst-case exposure have to be defined.装载方式和最差照射条件必须写明。

  3. Route, interface, and transfer status are qualified. Manual transfer is the alternate path.路线、接口和转运状态须确认。替代路径是人工转运。

  4. First treatment inside the automated barrier.自动化屏障内的第一道处理。

  5. Non-contact sanitization from NC into CNC. Microbial reduction has to be validated. A failed cycle goes to deviation and disposition.从 NC 进入 CNC 的非接触消毒。微生物降低水平必须验证。失败周期按偏差和处置执行。

  6. Handoff onto the cleanroom vehicle.接驳到洁净区车辆。

  7. The load is inside CNC, still short of Zone C/D.物料已在 CNC，尚未进入 C/D 区。

  8. Approved manual step at the C/D material airlock. Disinfectant, concentration, contact time, and the operator’s qualification are controlled.在 C/D 物料气闸做经批准的人工步骤。消毒剂、浓度、接触时间和人员资质受控。

  9. Entry only after that second barrier.通过第二道屏障之后才进入。

  10. Release criteria, monitoring, maintenance, and requalification stay in force after the first cycle.首次周期之后，放行标准、监测、维护和再确认仍然有效。

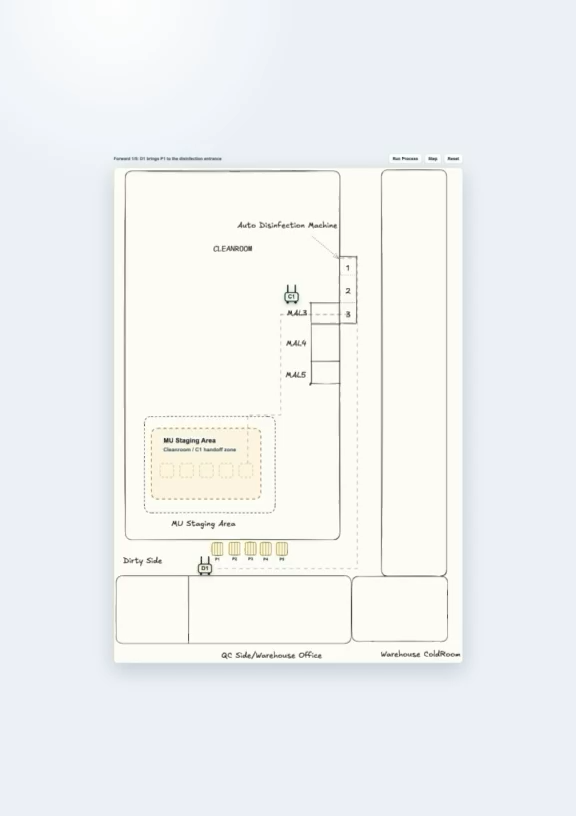

Layout drawing from the dirty side and warehouse cold room through MAL stations to the auto disinfection machine
Proposed layout: dirty side, warehouse cold room, MAL stations, auto disinfection machine. 拟议布局：污染侧、仓库冷库、MAL 工位、自动消毒机。

Material-flow page物料流转页

02 · Build and automate02 · 建造与自动化

The carrier and the goods record move together. 载具和货物记录一起动。

Stainless vessels on wheeled carriers beside palletised containers in a clean corridor

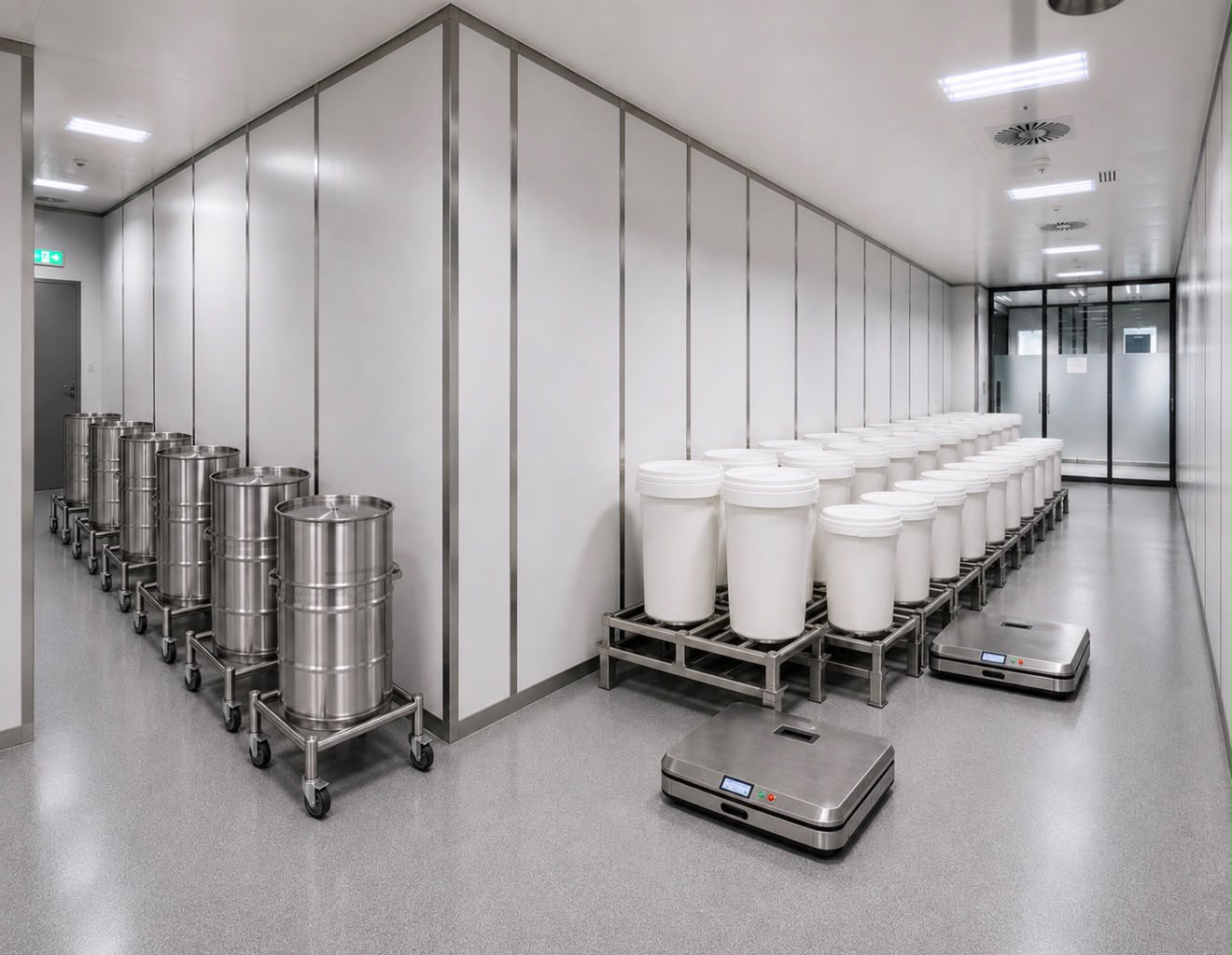

Installed systems on site. 现场已安装的系统。
Process laboratory with stainless service manifolds above the benching

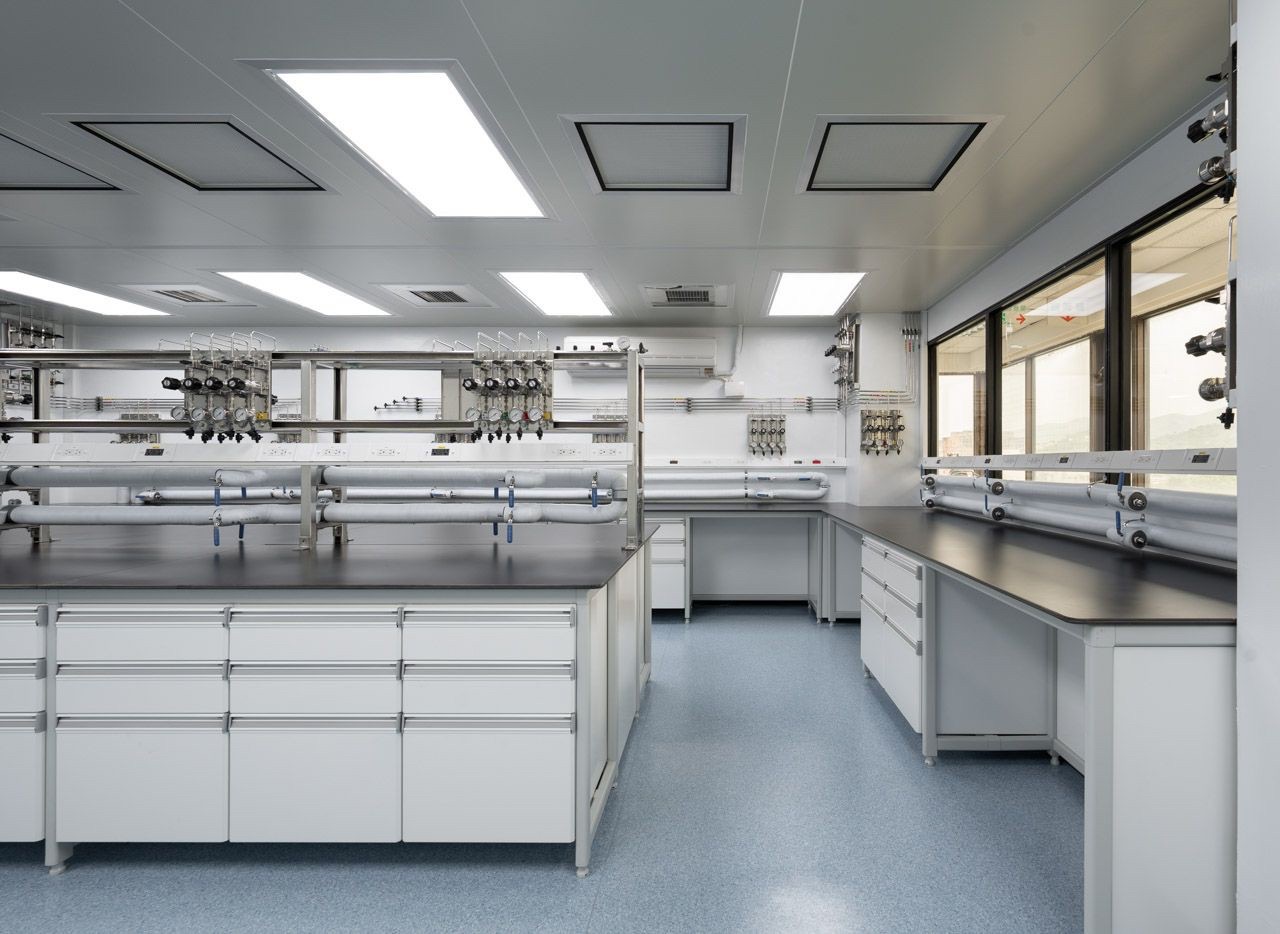

Stainless services in a process laboratory. 工艺实验室里的不锈钢公用配管。

Stainless work不锈钢

Furniture, racks, trolleys, pallets, platforms, and one-off fabrication sized to the AGV interface.家具、货架、推车、托盘、平台，以及按 AGV 接口做的单件加工。

Auto GI / GR自动收发料

Barcode or QR into ERP or SAP, so issue and receipt stay traceable when the carrier moves.条码或二维码进入 ERP 或 SAP，载具移动时收发仍可追溯。

One job同一项工作

Physical movement and the inventory movement are specified together, not bolted on after installation.实体物流和库存流动一起规定，而不是安装后再外挂。

03 · Controlled environment03 · 受控环境

A cleaning robot. 清洁机器人。

Legatus Formworks is the Singapore authorised partner. The drawings show the machine as specified. Legatus Formworks 是新加坡授权合作方。图纸按规格给出这台设备。

Overall dimensions整机尺寸
830 × 500 × 1780 mm
Payload负载
300 kg
Pick-and-place取放
≤ 5 kg
Maximum speed最大速度
1.0 m/s
Maximum height最大高度
4000 mm
Endurance / charge / swap续航 / 充电 / 换电
10 h / 1.5 h / 15 min
Drive驱动
Two-wheel differential两轮差速
Navigation accuracy导航精度
± 3 mm
Obstacle avoidance避障
Autonomous自主
Power供电
Auto charge or quick-swap battery自动充电或快换电池
Two views of the cleaning robot with callouts for the arm, tanks, blower, HMI, lift, and differential-drive chassis

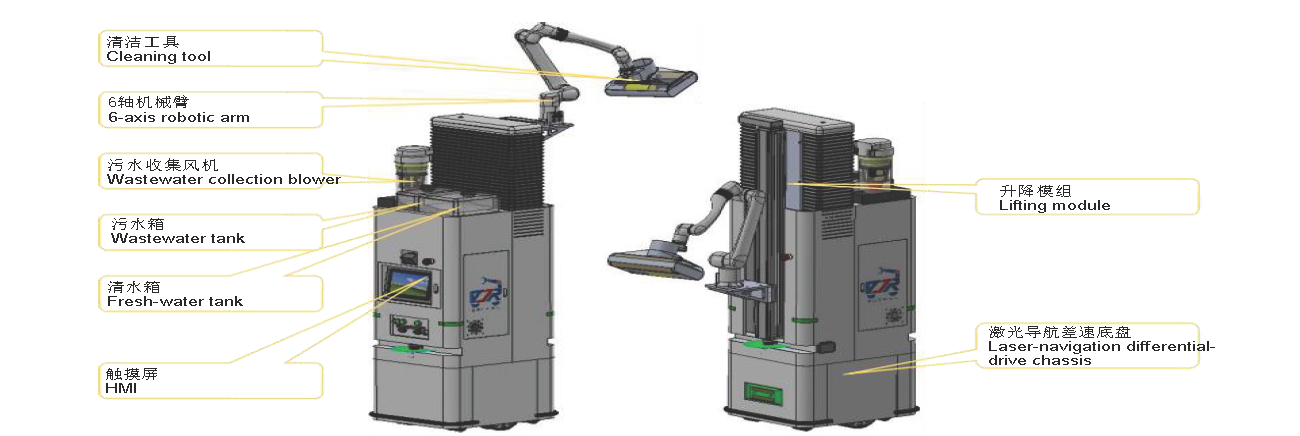

Cleaning tool, 6-axis arm, wastewater blower and tank, fresh-water tank, HMI, lifting module, and a laser-navigation differential-drive chassis. 清洁工具、六轴臂、污水风机与水箱、清水箱、触摸屏、升降模组，以及激光导航差速底盘。
Specified two ways. Differential drive with navigation ± 3 mm, and an omnidirectional steer-wheel chassis with ± 0.1 mm operating accuracy from laser SLAM, IMU, and a visual second fix. Lift travel is 2.6 m. Wall cleaning reaches 4 m. Ceiling reach is marked 3200 mm. 规格有两种写法。差速驱动、导航 ± 3 mm；全向舵轮底盘，激光 SLAM、IMU 与视觉二次定位的作业精度 ± 0.1 mm。升降行程 2.6 m。墙面清洁至 4 m。天花到达高度标注 3200 mm。
Isometric layout of the cleaning robot inside a room volume, labeled Clean Robot and Room

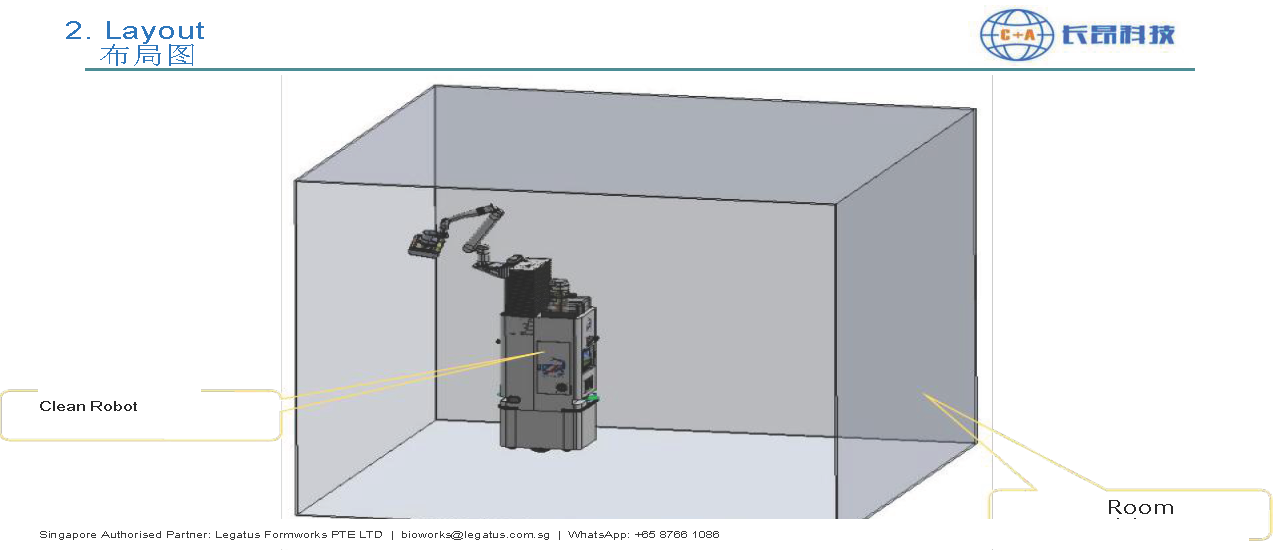

Room layout. Legatus Formworks is the Singapore authorised partner. 房间布局。Legatus Formworks 是新加坡授权合作方。
Three operating views: low-wall cleaning, high-wall cleaning, and ceiling cleaning marked 3200 mm

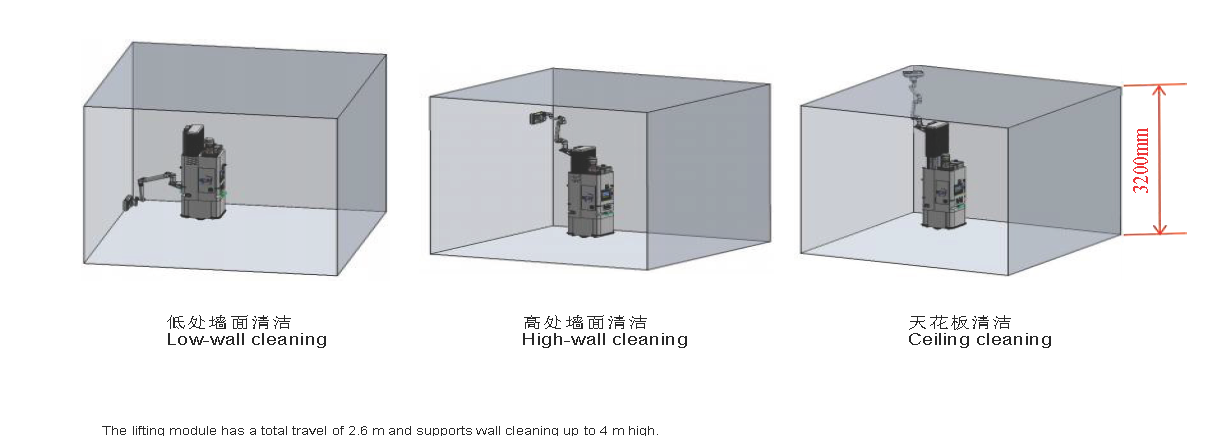

Low wall, high wall, and ceiling. Ceiling reach is marked 3200 mm. 低处墙面、高处墙面、天花。天花到达高度标注 3200 mm。

Wireless and charger requirements无线与充电要求

04 · IoT EVMS04 · 物联网 EVMS

Mapping and daily monitoring, one payload. 测绘和日常监测，同一份载荷。

End node, gateway, server, user. LoRaWAN on the room side. TCP/IP with TLS 1.2 after the gateway. The system is specified for 21 CFR 11. 终端节点、网关、服务器、用户。房间侧是 LoRaWAN。网关之后是带 TLS 1.2 的 TCP/IP。系统规格包含 21 CFR 11。

1 / 4

  1. Temperature and humidity in the warehouse or cleanroom. Room pressure, oxygen, carbon dioxide, and particles are in the wider set, plus chamber and utility points.仓库或洁净室的温度与湿度。更大的范围还包括房间压差、氧气、二氧化碳和粒子，以及箱体与公用工程点。

  2. LoRa from the node. LoRaWAN off the gateway.节点侧 LoRa。网关向外是 LoRaWAN。

  3. Cloud or on-premise. Secure payload over TCP/IP, TLS 1.2.云或本地。安全载荷走 TCP/IP，TLS 1.2。

  4. Central validation and routine monitoring. Scale the sensor count up for a study, then down for daily use.中央确效与例行监测。研究时增加传感器，日常使用时减少。

Site 1现场 1

50 sensors, one day.50 个传感器，一天。

A 7-day mapping ran on to 28 days because the data held. The client used it for engineering troubleshooting, pre-validation, validation, and a daily report. 计划 7 天的测绘因数据良好延至 28 天。客户将其用于工程排障、预确认、确认和日报。

Site 2 · GDP warehouse现场 2 · GDP 仓储

150 sensors, one day.150 个传感器，一天。

Validation manpower reported at half. Monitoring stayed live during the mapping, then the install scaled down to routine monitoring. 确效人力报为减半。测绘期间监测保持实时，随后缩编为例行监测。

ATlog TH-2D temperature and humidity transmitter with a whip antenna and a probe at the base

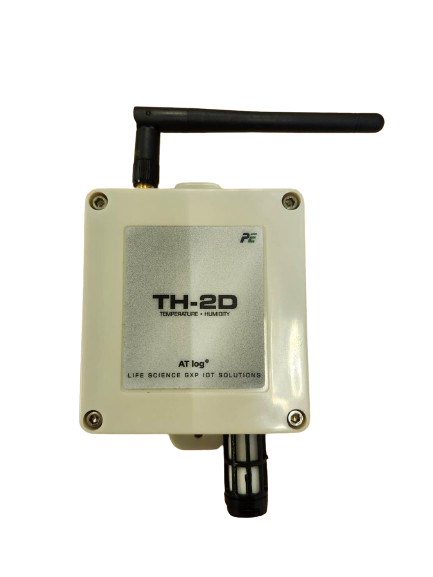

TH-2D node. Temperature and humidity. TH-2D 节点。温度与湿度。
Empty white industrial room with a glossy floor and exposed ceiling pipes and fluorescent lights

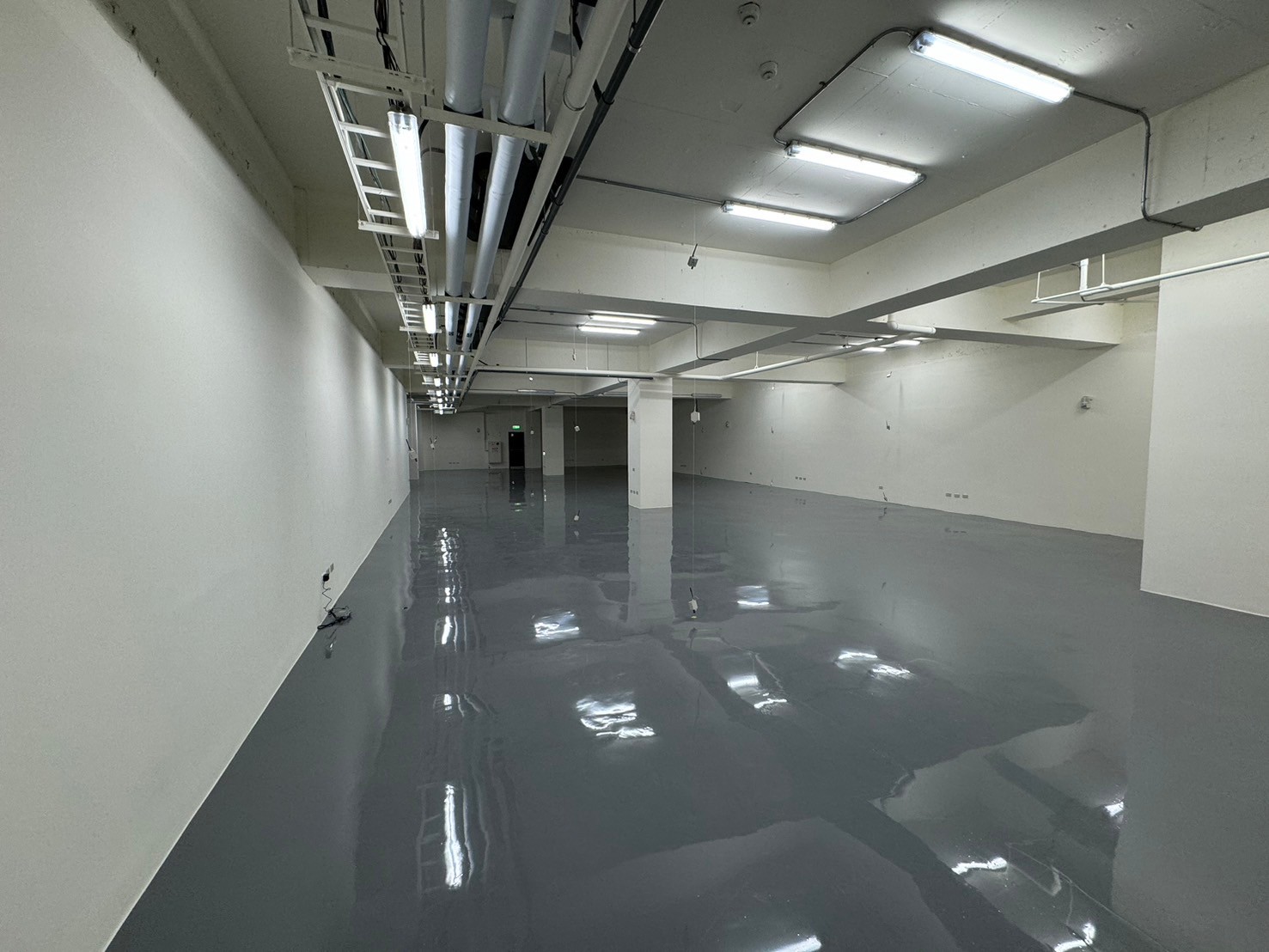

Plant room. The photograph is not labelled as Site 1 or Site 2. 厂房房间。照片未标明是现场 1 还是现场 2。
A technician in a hard hat and harness standing on warehouse racking while adjusting a tall instrument mast

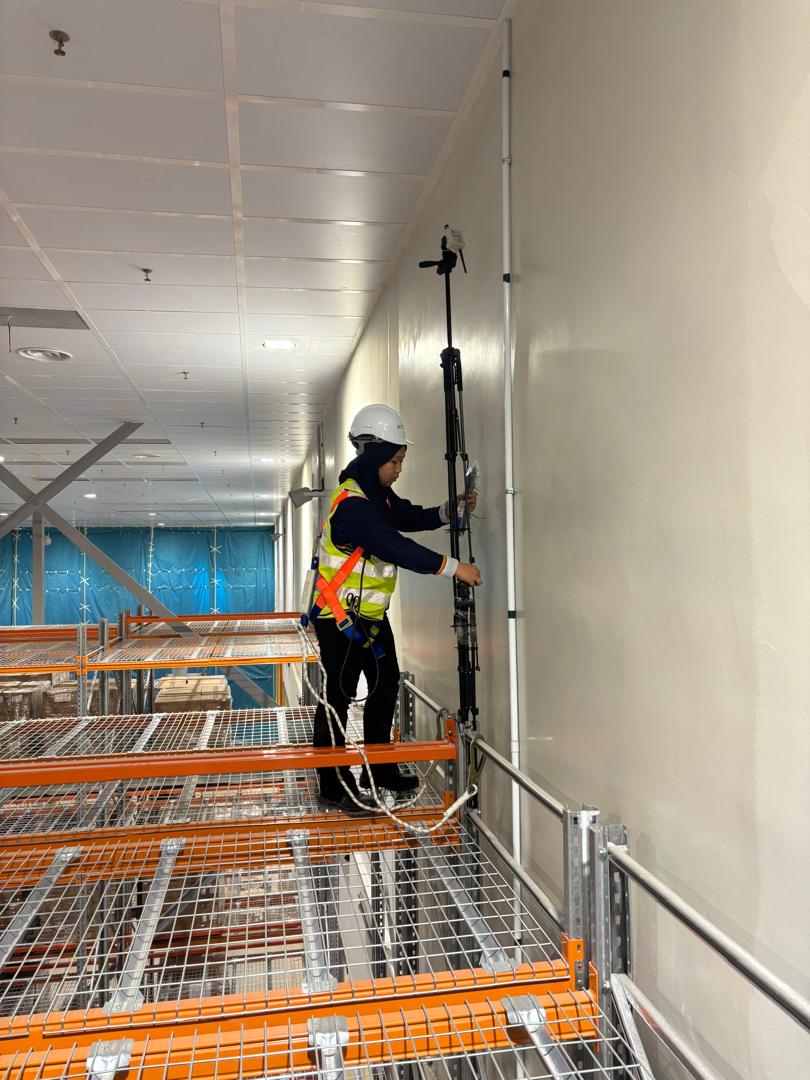

A mast being set on the racking. 货架上正在架设立杆。

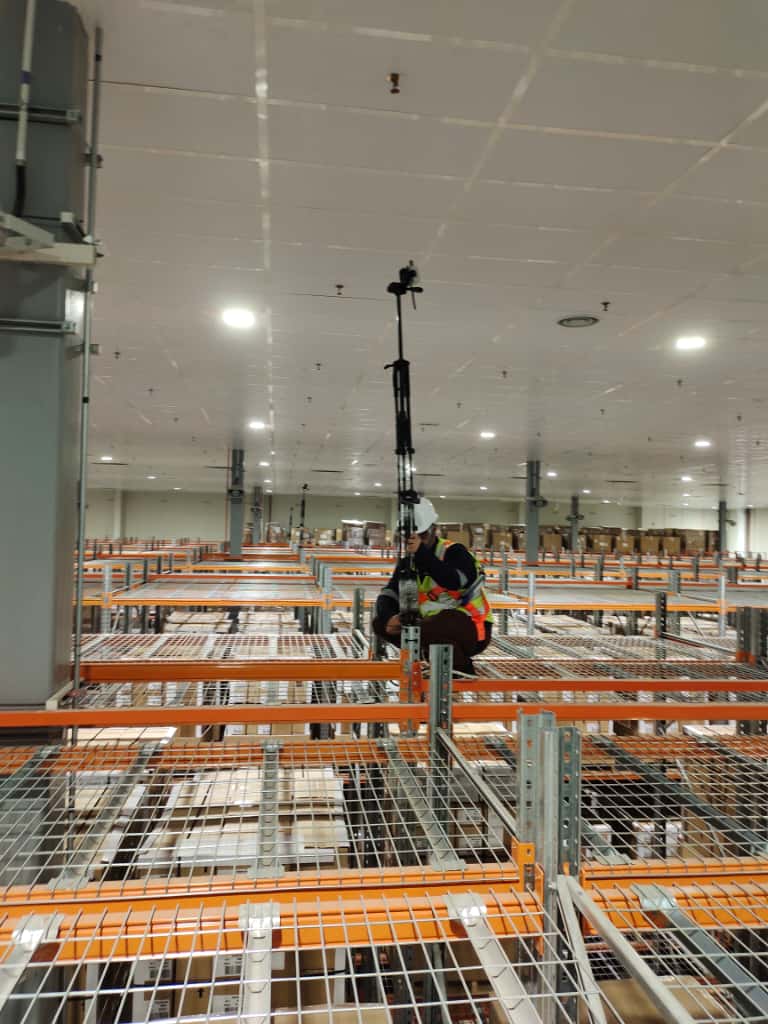

A technician kneeling on warehouse racking beside a tall black sensor mast
Sensor mapping on the racking. 货架上的传感器测绘。

Bring the room grade with the question.提问时带上房间级别。
